Brand Name : TONTEN
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T
Supply Ability : 20 units/month
Delivery Time : 5-7 work days
Packaging Details : Wooden box
Model Number : TT32-856
Product alias : PET recycling cleaning machine
Motor Power : 200(kw)
After-sales service : 1 year warranty
Equipment material : Stainless steel
Object of action : Plastic
Applicable raw materials : PVC,PET,PS,ABS,PE
Product weight : 2000(kg)
Dimensions : 1200*500*1300 (mm)
Plastic Crushing Recycling Production Line Film Bottle Flake Recycling Cleaning
Operating Principle of Plastic Crushing and Recycling Equipment
The plastic crusher drives the movable knife cutterhead to rotate at high speed through the motor. During the high-speed rotation of the movable knife, it forms a tendency of relative motion with the fixed knife. The gap formed between the movable knife and the fixed knife is used to create incisions for plastic crushing and shearing, thereby crushing and shearing large pieces of plastic. The pieces of plastic are crushed, and the crushed plastic is filtered and output through a screen to filter the size of the plastic particles.
The Role of Plastic Crushing Recycling Production Line
Plastic crusher is a machine specially used for crushing, recycling and reusing plastic products. Its main function is to change the physical properties and reduce the size of discarded plastic products, and process them into recyclable plastic particles and plastic products. Since plastic itself is difficult to degrade and recycle, the use of plastic crushers can effectively curb the accumulation of garbage and also reduce environmental pollution.
Advantages and Application Areas of Plastic Crushing Recycling Production Line
Plastic Crushing Recycling Production Line has an increasingly wide range of applications due to its following advantages.
1. Efficient crushing: The plastic crusher can crush plastic products of various hardnesses and sizes efficiently and reliably.
2. Strong adjustability: By replacing blades, screens and adjusting the rotation speed, the applicable range of the crusher can be effectively adjusted to meet different production needs.
3. Strong stability: The plastic crusher adopts high-quality materials and precision manufacturing technology, which is durable, long-lasting and stable.
4. Good processing effect: The plastic particles processed by the plastic crusher have uniform size, regular shape and stable quality, and can be used to manufacture various plastic products.
5. In general, plastic crusher has become a widely used plastic recycling equipment. Considering environmental protection, economy and other aspects, crushing, recycling and reusing plastic waste will be beneficial to the development of environmental protection in the future.
Plastic Crushing Recycling Production Line Parameter Table
model | Crushing chamber diameter (mm) | breaking ability (kg/h) | Moving knife (piece) | Fixed knife (piece) | Motor Power (kW) | Mechanical Dimensions (mm) | Weight(kg) |
HM-3pc | 185*150 | 100-150 | 9 | 2 | 2.2 | 760*470*920 | 160 |
HM-5.5pc | 250*220 | 130-200 | 6 | 2 | 4 | 970*700*1060 | 300 |
HM-7.5Pc | 320*240 | 200-300 | 9 | 2 | 5.5 | 1150*820*1100 | 370 |
HM-10pc | 420*275 | 350-500 | 12 | 2 | 7.5 | 1250*910*1340 | 500 |
HM-15Pc | 520*300 | 450-600 | 15 | 2 | 11 | 1410*1020*1500 | 650 |
HM-20Pc | 620*340 | 600-800 | 18 | 4 | 15 | 1810*1200*1770 | 900 |
HM-30Pc | 773*460 | 800-1000 | 24 | 4 | 22 | 2400*1700*2200 | 1860 |
HM-55Pc | 870*550 | 1000-1200 | 27 | 4 | 37 | 2400*1800*2200 | 2000 |
![]() |

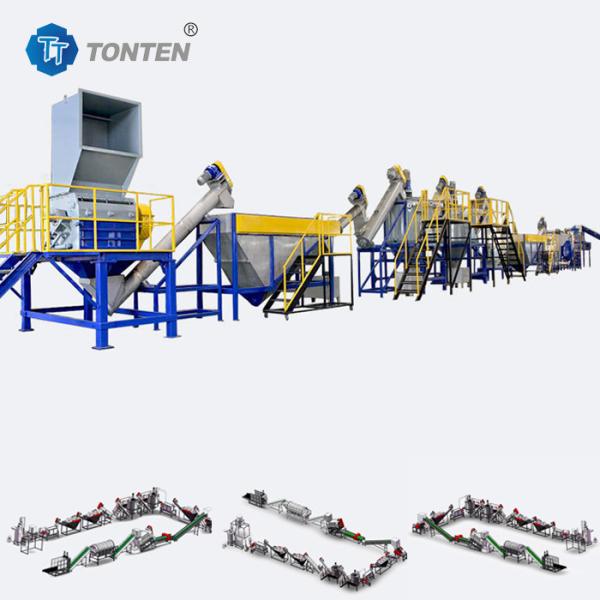

Plastic Crushing Recycling Production Line Film Bottle Flake Recycling Cleaning Images |
